      FS-550 Series Paddle Flow Switch Angles

      The Gems' FS-550 flow switch uses a cam operated switch to detect flow in either direction. The switch is actuated when the paddle moves to the necessary angle with flow present in the pipe.

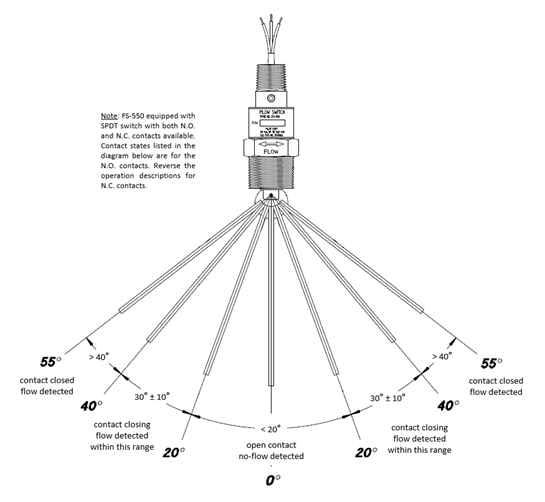

      See the diagram below for paddle angles:
